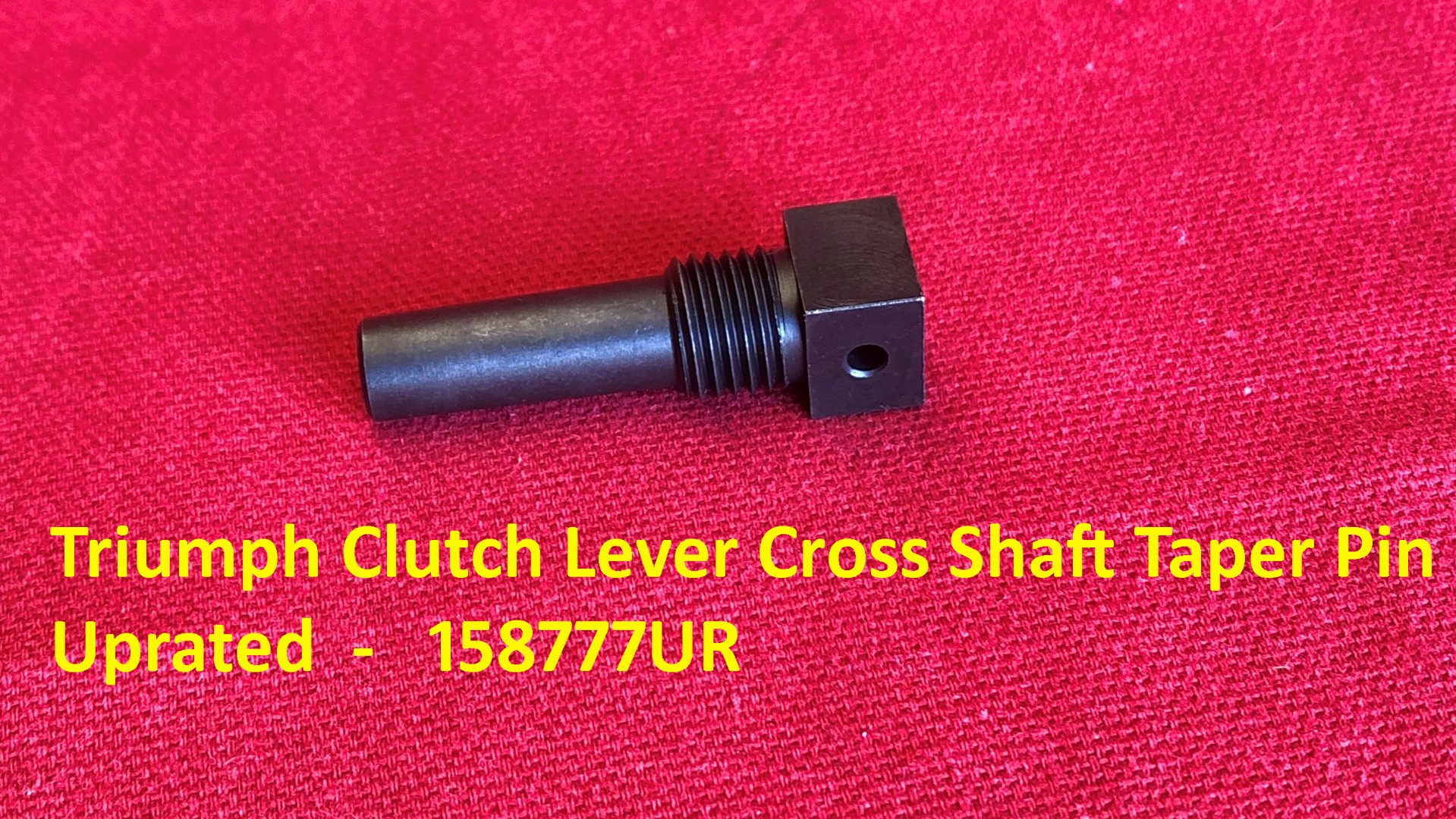

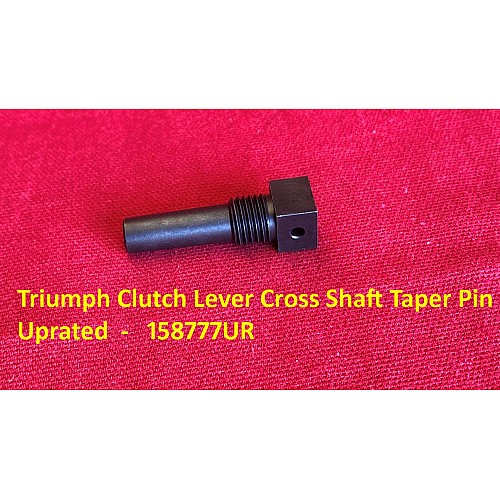

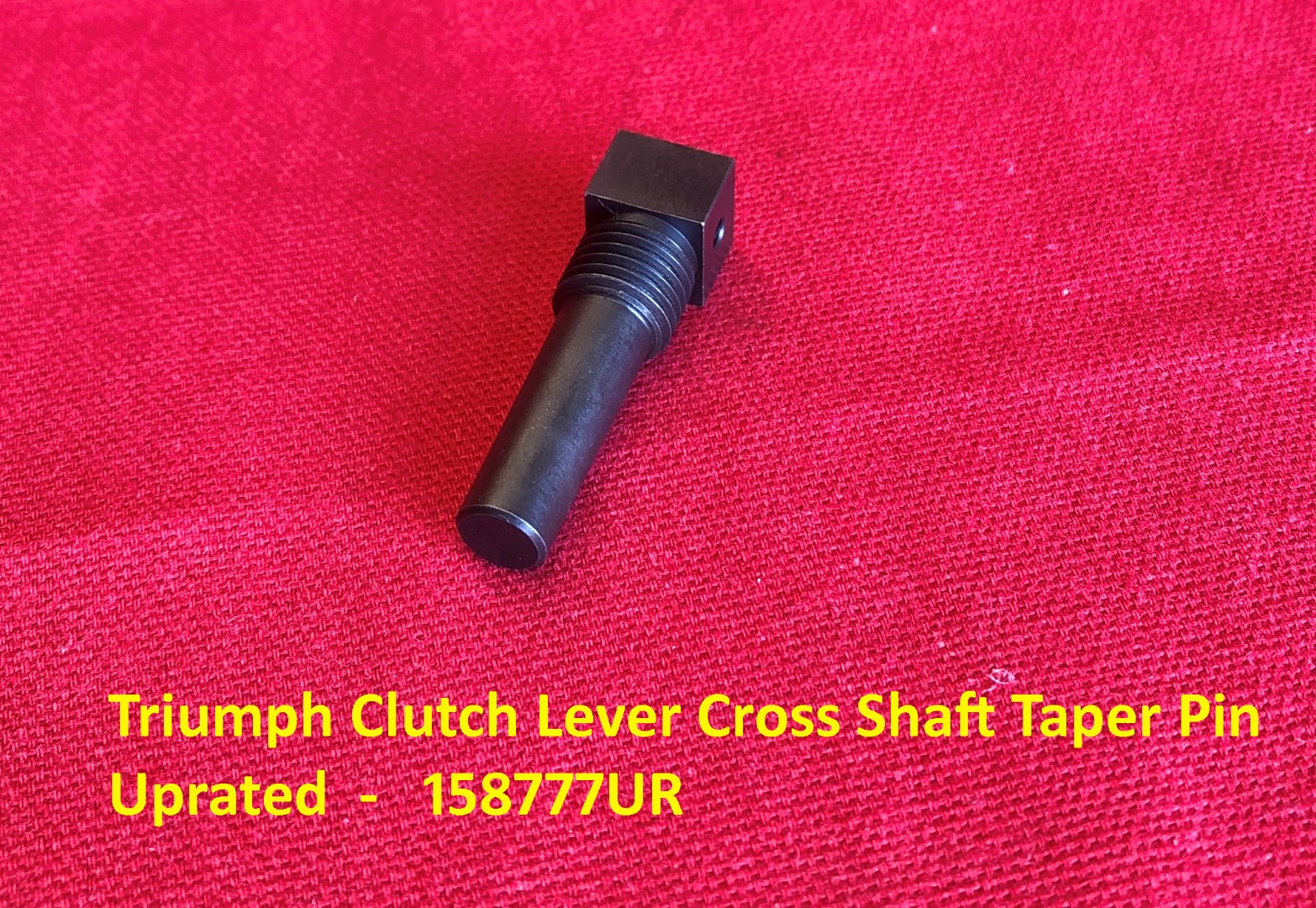

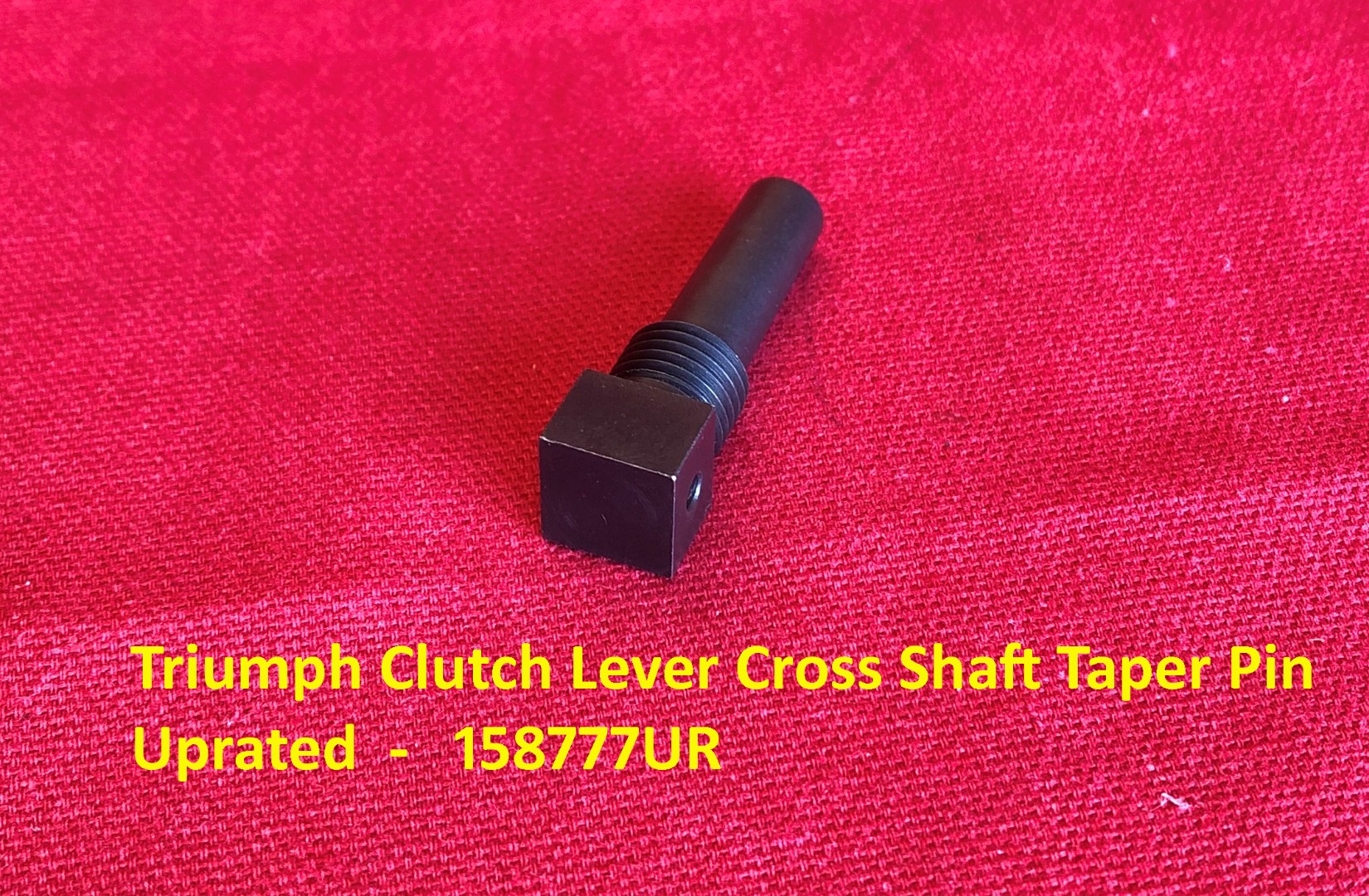

Triumph Clutch Lever Cross Shaft Taper Pin - Uprated - 158777UR
Click on the Image for Gallery
Triumph Clutch Lever Cross Shaft Taper Pin - Uprated - 158777UR
The tapered pin holding the release fork to the cross shaft often cracks or breaks.
This can be the reason for clutch drag - caused by part of the slave cylinder push
rod travel being taken up by movement between the fork and the cross shaft. When
carrying out any work involving the removal of the engine, gearbox or both from the
car, the opportunity should be taken to replace the pin while access to it is easy,
whether it appears to need replacing or not.
Correct seating of the pin in the cross shaft is important. Ensure that any broken parts
of the pin are removed from the fork and shaft. Also, the taper angle of the pin should
correspond to that in the hole in the cross shaft.
Trial fitment of the pin in the hole in
the cross shaft without the presence of the release fork will bring to light any irregularities
in the two components.
If the pin wobbles in the hole, it may be 'tapped' into a better fit.
If the amount of tapping required is excessive, replacement of the clutch cross shaft or
the tapered pin may be necessary.
As used on the Following Vehicles
Triumph Stag
Triumph Dolomite Sprint
Triumph Mk2 Saloons
Triumph 2000
Triumph 2500
Triumph 2.5PI
Triumph TR2
Triumph TR3
Triumph TR3a
Triumph TR4
Triumph TR4a
Triumph TR5
Triumph TR250
Triumph TR6
